55" OLM Series

Applications & Products > Videowall Displays > MLCD Video Walls

MLCD Video Wall
EVOLUTION OF SEAMLESS MLCD

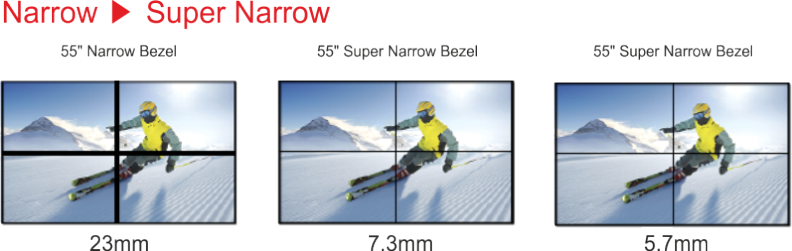

Breathtaking technology with Full HD and Ultra Narrow Bezel (5.5mm), the OLM-5510/5520/5550 will pioneer the multi display market with seamless tiled display experience and vivid image. Being equipped with eco-friendly DIRECT LED BLU, the 55” FHD multi display consumes less power than conventional CCFL BLU model.

What is IPS Display?

Model		OLM-5510	OLM-5520	OLM-5550
LCD PANEL		VA	IPS	VA
Power Supply		Power Supply AC 100V - 240V [50/60Hz]
Power Consumption	Max	171W	187W	235W
	Typical	163W	110W	205W
	Standby	3.0W	3.0W	3.0W
Luminance of White		450cd/m²	500cd/m²	700cd/m²
Contrast Ratio		3,500:1	1,400:1	3,500:1
Seam Gap		5.9mm	5.6mm	5.7mm
Active Display Area		1,209.6H) x 680.4(V)mm
Aspect Ratio		16:9
Number of pixels		1920(H) x 1080(V)
Pixel Pitch		0.63 x 0.63 mm
Display Colors		16.7M	1.06Billion	16.7M
Viewing Angle		H: 178°, V:178°
Response Time		8msec	10msec	8msec
Environmental	Temperature	5℃ ~ 35℃
	Humidity	35% ~ 75%
Input Signal	PC/DVI Signal (support HDCP)	VGA, SVGA, XGA, SXGA, UXGA, WXGA 480p, 576p, 720p(50/60), 1080i(50/60), 1080p(50/60)
	Video Signal	NTSC, PAL, SECAM
	Frequency	H : 31.5 ~ 75kHz, V : 50, 60 Hz
In/Output Terminal	Input	DVI-D x 1, PC x 1, Video x 1, RS-232C x 1, LAN x 1, Service x 1
	Output	DVI-D x 1, PC x 1, Video x 1, RS-232C x 1
Lamp Life Time		Min 50,000Hrs (Ta:25±2℃)
