AV8365DN - Bilmax Digital Solutions

FUTURES

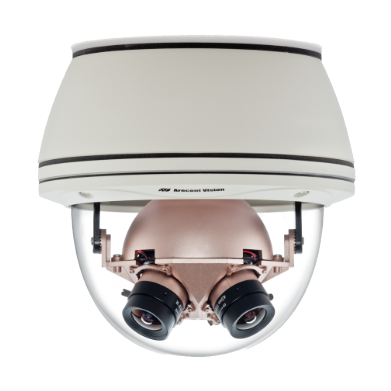

8.0 Megapixel H.264/MJPEG 360˚ Camera, 6400x1200, 4 x 4mm MP Lens, Surface/hard-ceiling mount, Indoor/Outdoor, IP66

SPECIFICATIONS

Resolution
8.00 MP


Frame Rate
6.0

Mechanical

• Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt


• Hard ceiling mount and surface mount embedded


• Die-cast aluminum chassis with 5.5” vandal resistant polycarbonate dome bubble


• Conduit 3/4” NPT standard


• Total Unit dimensions:


• Ø6.9 x 6.55 in (H), bubble only: Ø5.5 x 3.4 in (H)


• Ø175 x 166 mm (H), bubble only: Ø140 x 87 mm (H)


• 3.81 lbs (1.75 kg)


Data Transmission

• Video frame rate up to:


• - 6 fps @ 6400x1200


• Compression type


• - H.264 (MPEG4, Part 10)


• - Motion JPEG


• 21 levels of quality


• TFTP, HTTP, RTSP, RTP over TCP, RTP over UDP image transmission protocols


• 100Base-T Ethernet Network Interface


• Bit rate control from 100Kbps to 10Mbps


• Multi-streaming: 8 non-identical streams


Regulatory

   FCC, CE, UL


Programmability

• Privacy mask


• Auto Exposure (AE) and Gain Control (AGC) >120dB


• On-camera real-time motion detection with 1024 detection zones


• Auto backlight compensation


• Auto multi-matrix white balance


• 50/60Hz selectable flicker control


• Electronic pan, tilt, zoom (PTZ)


• Electronic image flip - 180 degree rotation


• Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264


• Programmable shutter speed to help control motion blur


• MoonLight™ mode - extended exposure and proprietary noise cancellation


• Programmable resolution, brightness, saturation, gamma, sharpness, tint


• Picture-in-Picture: simultaneous delivery of full field of view and zoomed images


• Bandwidth & storage savings by running at 1/4 resolution


Product Imaging

• Four 2 megapixel CMOS image sensors


• 1600(H) x 1200(V) pixel array each sensor


• ½” optical format


• Bayer mosaic RGB filter


• Minimum illumination of:


• Color: 0.2 lux @ F2.0


• Day/Night: 0 lux, IR sensitive


• Dynamic range 61 dB


• Maximum SNR 50 dB


• Moonlight™ mode - extended exposure and proprietary noise cancellation

Full Field of View (FOV) Resolutions
6400(H)x1200(V) 8 megapixel total
3200(H)x600(V) 2 MP total (1/4 resolution)




Cropped Resolution
3200(H)x600(V)











Electrical

• General purpose opto-coupled input and output


• Power over Ethernet (PoE): PoE 802.3af for camera


• Auxiliary power 12-48V DC, 24V AC


• Power consumption:9 watts maximum


• Heater & Blower Electrical:


• Voltage Input: 12V to 20V DC/24VAC (separate power required)


• Power Output: 11W Max (DC12V); 13W Max (AC24V)


• Heater Switch: On: 17C° (62.6 °F), Off: 30 °C (86 °F)


• Blower Switch: On: 10C° (50°F), Off: 15 °C (59 °F)


• Blower Switch: On: 50C° (122 °F), Off: 45 °C (113°F)


Standard

   RoHS, REACH, IK-10, IP66




















Environment

• Operating temperature: -40°C (-40°F) to +50°C (122°F) w/ Heater


• Humidity: 0% to 90% (non-condensing)


• Stable image temperature: 0°C (32°F) to +50°C (122°F)


• Storage temperature: -30°C (-22°F) to +60°C (140°F)
