PFE-1014R

PFE-1014R

Key Features



  • Extend data and power up to 2km via a single Hybrid Fiber Cable

  • Enable PoE devices to distant remote location

  • Supporting high power consumption devices (up to 60W at 450m link)

  • Flexible installation option - 1 or 4 PoE output receivers selectable

  • Outdoor casing protects operation under wide temperature range (PFE-1011R/1014R)

  • Outdoor weatherproof models are sustainable from water and dust (PFE-1011R/1014R)

OVERVIEW

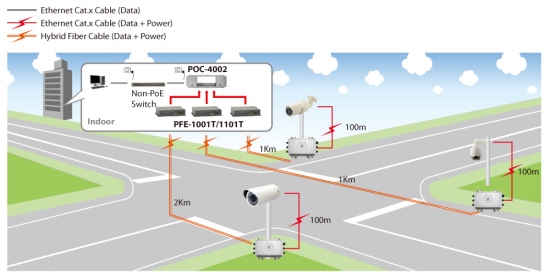

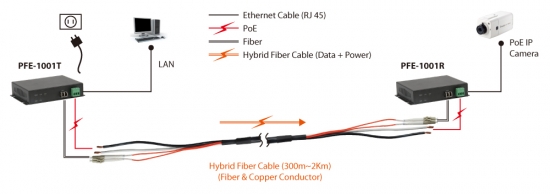

/ DIAGRAM

Using hybrid fiber and copper cable, the LevelOne PFE range can deliver integrated power and data over a distance of 6,800 ft (2km) to a receiver which provides high-power PoE output for IP surveillance applications. A tough outdoor range (PFE-1011/1014) provides the same performance within a durable IP66-rated waterproof housing for harsh environmental conditions and temperature range of -40°C to 60°C.
