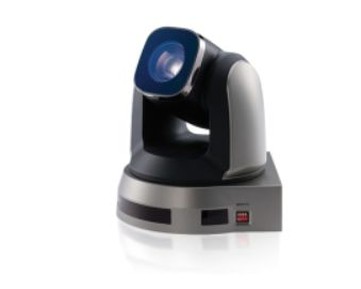

VC-G30 - Bilmax Digital Solutions

Key Features

• Full HD 1080p supported high definition signal output format


• High frame rate supporting 60 frames per second


• Up to 128 user-defined preset modes to allow ease-of-use in all environments


• 180 times variable zoom ratio (15x optical zoom with 12x digital zoom)


• 3G-SDI, DVI, Component, C-Video image output  simultaneously


• Maximum horizontal/vertical speed of rotation: 120 degrees/ second


• Exclusive 2D/3D noise reduction technology


• Compatible with major video conferencing and lecture capture codec

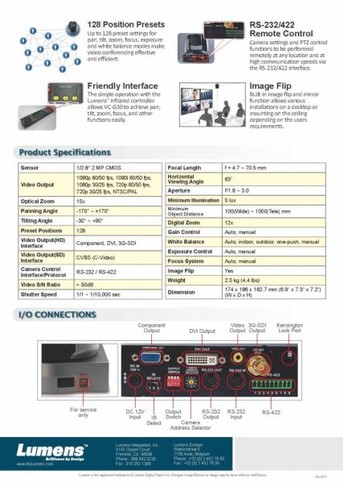

Sensor

1/2.8” 2MP CMOS

1080p 60/50 fps, 1080i 60/50 fps,
1080p 30/25 fps, 720p 60/50 fps,
720p 30/25 fps, NTSC/PAL

Optical Zoom

15x

Panning Angle

-170° ~ +170°

Tilting Angle

-30° ~ +90°

Preset Positions

128

Video Output(HD) Interface

Component, DVI, 3G-SDI

Video Output(SD) Interface

CVBS (C-Video)

Camera Control Interface/Protocol

RS-232 / RS-422

Video S/N Ratio

> 50dB

Shutter Speed

1/1 ~ 1/10,000 sec

f = 4.7 ~ 70.5 mm

Horizontal Viewing Angle

Aperture

F1.8 ~ 3.0

5 lux

100(Wide) ~ 1000(Tele) mm

Digital Zoom

12x

Gain Control

Auto, Manual

White Balance

Auto, Indoor, Outdoor, One-Push, Manual

Auto, Manual

Auto ICR

Auto, Manual

Focus System

Auto, Manual

Image Flip

Yes

Weight

4.4 lbs (2.0 Kg)

Dimension: (LxWxH)

174x186x183 mm (6.9" x 7.3" x 7.2")
