Wall & Ceil Mounts

Ceil and Wall Mounts

Description

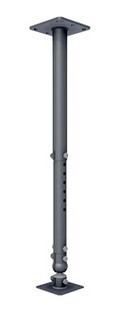

The universal ceiling mount 390061b is a rigid and strong ceiling mount suited for suspending EH7500 or EX855 and EW865 projectors from the ceiling.

• Maximum load 70 Kg.
• Standard equipped with the patented ball-joint.
• Maximum adjustment angle 20 degrees
• Adjustable between 700-940 mm.
• Mounting pattern 90 x 90 mm suited for EH7500 and EX855/EW865 projector mounts.

The above will need a projector base plate, EH7500/EH7700 (392311b) and the EX855/EW865 (392315b). Both base plates use 4 x 8M screws to attach your projector and the ceiling mount plate uses 4 x M6 x20.



Model Name/ Part No

390061b

Description

The universal ceiling mount 390065b is a rigid and strong ceiling mount suited for suspending EH7500/EH7700 or EX855/EW865 projectors from the ceiling.

• Maximum load 70 Kg.
• Standard equipped with the patented ball-joint.
• Maximum adjustment angle 20 degrees
• Fixed length of 165 mm.
• Mounting pattern 90 x 90 mm suited for EH7500 and EX855/EW865 projector mounts.


Model Name/ Part No

390065b

Description

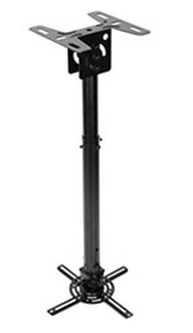

The OCM815B Black Universal Projector Pole Mount is ideal for high ceilings. Easy to set up with its unique design gives you everything you need for quick adjustment, the flexibility to fit almost any projector and hassle free projector maintenance. It’s the perfect universal projector pole mount.

. Easy to install – Great flexibility and adaptability
. Quick projector reconnect/ disconnect
. +/- 30° rotation
. +/-20° pitch and roll
. Vaulted and cathedral ceiling compatible
. Wall mount capability
. Adjustable height from (576mm~826mm)
. Cable routing for a clean look
. Load capacity 15kg



Model Name/ Part No

OCM815B

Description

The OCM815W White Universal Projector Pole Mount is ideal for high ceilings. Easy to set up with its unique design gives you everything you need for quick adjustment, the flexibility to fit almost any projector and hassle free projector maintenance. It’s the perfect universal projector pole mount.

. Easy to install – Great flexibility and adaptability
. Quick projector reconnect/ disconnect
. +/- 30° rotation
. +/-20° pitch and roll
. Vaulted and cathedral ceiling compatible
. Wall mount capability
. Adjustable height from (576mm~826mm)
. Cable routing for a clean look
. Load capacity 15kg



Model Name/ Part No

OCM815W

Description

 The OCM818B-RU Black Universal Projector Flush Mount is suitable for installation in the office or at home. Easy to set up with its unique low-profile design gives you everything you need for quick adjustment, the flexibility to fit almost any projector and hassle free projector maintenance. It’s the perfect universal projector flush mount.

. Easy to install – Great flexibility and adaptability
. Quick projector reconnect/ disconnect
. +/- 30° rotation
. +/-20° pitch and roll
. 70mm horizontal shift
. Adaptable to different projectors
. Load capacity 15kg



Model Name/ Part No

OCM818B-RU

Description

The OCM818W-RU White Universal Projector Flush Mount is suitable for installation in the office or at home. Easy to set up with its unique low-profile design gives you everything you need for quick adjustment, the flexibility to fit almost any projector and hassle free projector maintenance. It’s the perfect universal projector flush mount.

. Easy to install – Great flexibility and adaptability
. Quick projector reconnect/ disconnect
. +/- 30° rotation
. +/-20° pitch and roll
. 70mm horizontal shift
. Adaptable to different projectors
. Load capacity 15kg



Model Name/ Part No

OCM818W-RU

Description

Black Flush Universal Projector Mount. Great flexibility and adaptability, pitching upwards and downwards up to 20 degrees, 360 degrees rotation, concealed cable, maximum loading 15kg and suitable for all projectors.



Model Name/ Part No

OPCMU817B

Description

White Flush Universal Projector Mount. Great flexibility and adaptability, pitching upwards and downwards up to 20 degrees, 360 degrees rotation, concealed cable, maximum loading 15kg and suitable for all projectors.



Model Name/ Part No

OPCMU817W

Description

The OWM1000 projector wall mount for the Optoma ultra short throw projector features a high quality telescopic arm and adjustable mounting plate for perfect installation with a screen or interactive whiteboard in education or corporate environments.



Model Name/ Part No

OWM1000



Downloads

Brochure    Manual

Description

The OWM855W projector wall mount for the Optoma short throw projector features a high quality telescopic arm and height adjustment plate for
versatile installation with a screen or interactive whiteboard in classrooms and offices.


Model Name/ Part No

OWM855W



Downloads

Brochure    Manual
