Indoor Black Surface LED displays

Applications & Products > LED Displays > Products > Indoor LED displays

Indoor (Black Surface) Series

Products：TL3-B/TL4-B/TL5-B/TL6-B/TL7.62-B/TL8-B/TL10-BTL12-B

The black SMD Display Solutions from Retop appeared to the world-class arenas. Retop black SMD Display Solutions are featured by their extraordinary contrast ratio without sacrificing the high brightness.

•Revolutionary black SMD to dramatically increase the contrast, blackest display ever
•Ultra-brightness LEDs to be used to maintain the brightness from 1000 nits to 2000 nits
•Long Life Span
•Seamless apperance and lightweight
•16-bit color processing
•High refresh rate
•Ideal for close viewing distance.

Product Futures Description Technical Parameters Applications

The LED Commercial Applications are tailored to any shape or size, and outshine in all light conditions and various weather. From HongKong Victoria Harbor, USA LA Live, center of Los Angeles to Holland Rembrandt Square, Retop products in various forms are at the center of attention.

Integrated with world-class Scala software, extra energy-saving design for 24/7 operation, and specialized in weather-proof casing, Retop signage solutions are committed to offer advertisers the best using experiances. Featuring in color uniformity & color reproduction with state-of-the-art pixel calibration technology, signage applications exactly achieve special needs of advertising and commercial markets.

With unrivalled video quality, exceptional durability and rich experience, Retop LED Sport Applications present unforgettable performances at top sports venues all over the world. Retop complete numerous time-tested classic installations with 5 years in more than 30 stadiums and arenas and achieved many" first" in sports market. The LED Sport Applications are tailored to any shape or size, and outshine in all light conditions and various weather.

Amazing spectators and sponsors, advertisers can present and instantly broadcast brilliant graphics, animation and video on banner systems stretching across the perimeter of the sporting arena, or fascia ribbon-style screens placed for unbelievable effects. Real-time motion processing can be featured in live broadcast for on-site audiences. Retop LED signage also can be appeared in stadiums, race track or other venue to attract audiences, improve advertisers' image, deliver their message. Audiences can be engaged in the match with a live feed of the action by using the seamless-curved center hung, update them with match statistics and interesting facts.

The LED Sport Applications of perimeters, fascia screens, signage and center hung screens from Retop always remains at the forefront of LED technology creation and production.

As a leading expert in the LED display industry, Retop delivers advanced technologies and a world of experience to help customers support or stage memorable concerts, motor shows, exhibitions, sporting spectaculars and other events .Retop amazes audiences and LED industry by delivering the largest rental display in 2010 World Expo , Shanghai. Retop are also active in international Game and Competition such as Formula 1, European Football League, Miss World. We are committed to consistently invest to upgrade the rental line to offer versatile services to our customers.

Retop offers a complete, modular LED solutions which contribute to smoother event management. Rental applications are specialized to easy to transport and fast and flexible installation and dismantling to support complex roadshows and concerts where mobility is a priority. In addition, leveraged in world-famous video processor, rental applications can support comprehensive advanced display facilities including LED indoor and outdoor ,high definition display , Samsung LCD , Samsung Ultra-brightness LCD and Custom interactive terminals which is an extra benefit for rental companies.

Retop LED display solutions achieve the exacting requirements of event organizers. Retop delivers the best in versatile, reliable and cost-effective display technologies that convey true-to-life images both indoors and outdoors, whatever the weather or lighting conditions. Retop is the best choice to let you outshine in the rental business.

Model	TL3-B	TL4-B	TL5-B		TL6-B	TL7.62-B	TL8-B	TL10-B
LED Type	SMD(0606)	3in1SMD	3in1SMD		3in1SMD	3in1SMD	3in1SMD	3in1SMD
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B		1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED Driving Method	1/16 dynamic scan	1/16 dynamic scan	1/16 dynamic scan		1/8 dynamic scan	1/4 dynamic scan	1/4 dynamic scan	1/4 dynamic scan
Board Pixels	6432(WH)	6432(WH)	6432(WH)		3216(WH	3216(WH	3216(WH	3216(WH
Pixel Pitch	3mm	4mm	5mm		6mm	7.6mm	8mm	10mm
LED Board size	1929612	25612812	32016012		1929616	24412216	25612816	32016016
LED Board	4*8	3*6	2*4		4*8	2*6	2*6	2*6
Module Area	0.59㎡	0.59㎡	0.41㎡		0.59㎡	0.36㎡	0.39㎡	0.61㎡
Module Size	768768162	768768162	640640162		768768166	488732166	512768166	640960166
Net Weight	18Kg	18Kg	23Kg		25Kg	19Kg	20Kg	31kg
Power	AC220/110 ± 10%, 47~63Hz
Water proof	N/A
Max.power consumption	≤980W/㎡	1000W/㎡	≤630W/㎡	≤950W/㎡		≤1270W/㎡	≤1270W/㎡		≤780W/㎡
Average Power Consumption	≤343W/㎡	350W/㎡	≤221W/㎡	≤333W/㎡		≤445W/㎡	≤445W/㎡		≤273W/㎡
Hor.viewing Angle	120º	120º	140º	140º		140º	140º		140º
Ver.viewing Angle	120º	120º	140º	140º		140º	140º		140º
Brightness	≥1200 cd/㎡	≥1200 cd/㎡	≥1000 cd/㎡	≥1500 cd/㎡		≥2000 cd/㎡	≥2000 cd/㎡		≥1500 cd/㎡
Pixel Density	11111/㎡	62500/㎡	40000/㎡	27778/㎡		17222/㎡	15625/㎡		10000/㎡
Contrast Ratio	3000:1	3000:1	3000:1	3000:1		3000:1	2000:1		3000:1
Operating temperature	-20ºC to +60ºC
Operating Humidity	20% to 90%
Lifetime (50% brightness)	100,000 hours
Processing	16 bit	16 bit	16 bit	16 bit		16 bit	16 bit		16 bit
Colors	687 billion	687 billion	687 billion	687 billion		687 billion	687 billion		687 billion
Refresh Rate	1200Hz	1200Hz	1200Hz	2400 Hz		2400 Hz	2400 Hz		2400 Hz
Frame Rate	60 fps	60 fps	60 fps	60 fps		60 fps	60 fps		60 fps
Brightness Level	Manual 100 levels, automatically 16 levels.

Application of Indoor Black SMD series series

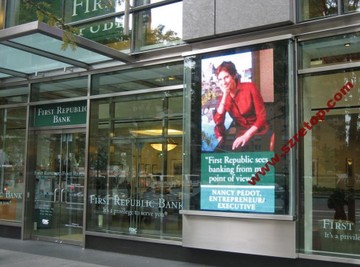

Bank of Newyor 4mm	Retop P1.5mm LED Display in Enlight Media Teletorium

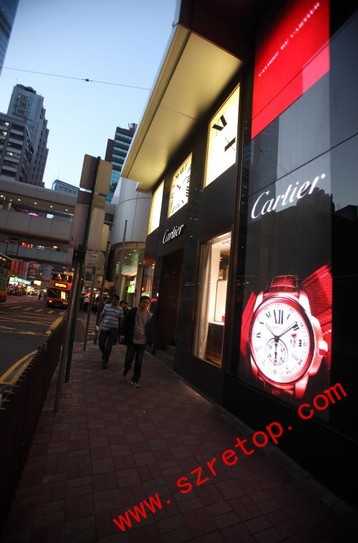

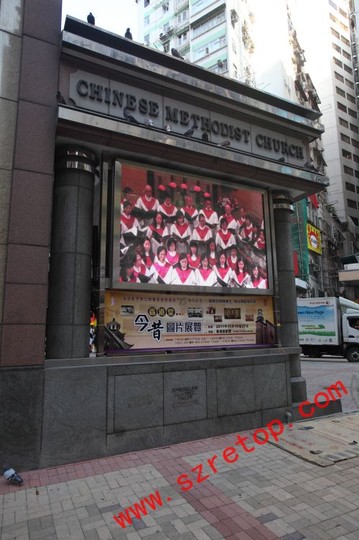

Cartier HongKong 6mm	Methodist Churge 6mm
