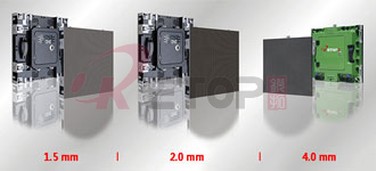

1.5mm/2.0mm/3.0mm/4.0mm series - Bilmax Digital Solutions

Product Feature:

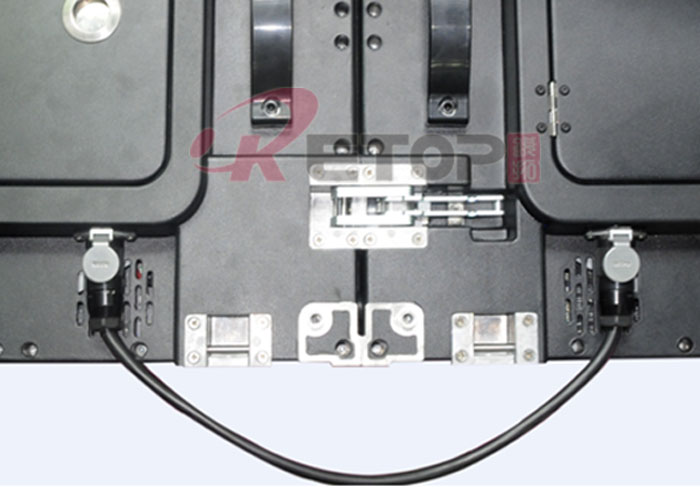

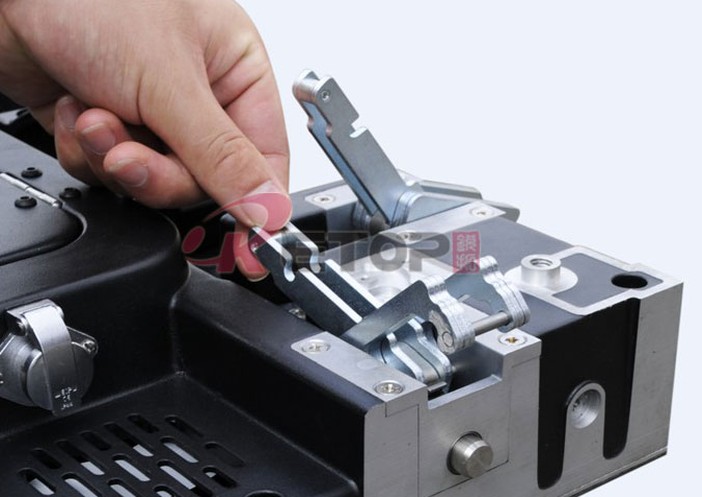

1. The particular cabinet connection design makes the cabinet connect tighter and the connection error is 0.1mm.

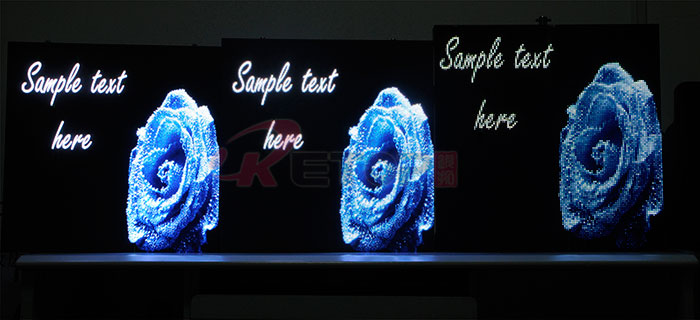

2. The picture is extracted stably without corrugation and black screen. With regard to the image with dynamic display effect, the edge of the image is clear. The dynamic effect can be shown perfectly. The image information can be restored accurately and factually. Thus, the video is played fluently with exquisite image effect, bringing the pleasant visual enjoyment. Moreover, the LED display has very excellent brightness uniformity. With the application of brightness correction for single dot, the brightness of the whole display screen has a near-perfect performance in uniformity.

No Time Delay

                                           LED High Definition TV                                    Projector

3. The system for the product developed by Retop endows the product with the features of no time delay for signal, gorgeous color, grey scale of 16bit as well as the wireless remote control function. (Customers can choose other systems.)

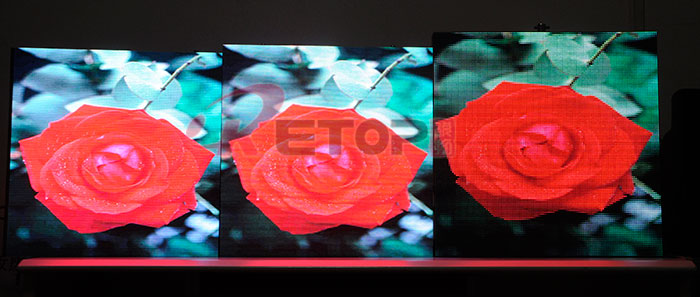

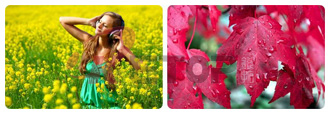

Real Color Reproduction

                              Effect before Color Reproduction                                Effect after Color Reproduction

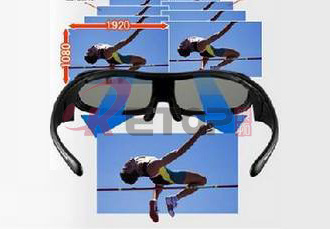

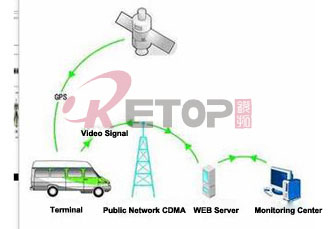

Unique Wireless Transmission Technology                                    3D Video Effect

4. Each cabinet is configured with two pieces of specially designed mini power supply. The product has no fan with low noise. The strong heat dissipation is attributed to the alloy material and the special design for thermal conduction.

5. We have been engaged in manufacturing the LED display for more than 15 years. Our rich structural design experience as well as the accumulated data support and the stable components can ensure much longer lifespan of the product. Normally, the rejection rate of the product is very low. Even though there is a malfunction, only some small components such as the module need to be repaired. The maintenance cost during the service period is very small.

6. Through the pixel-level color correction technology, the product can show the image more clearly with stronger sense of reality.

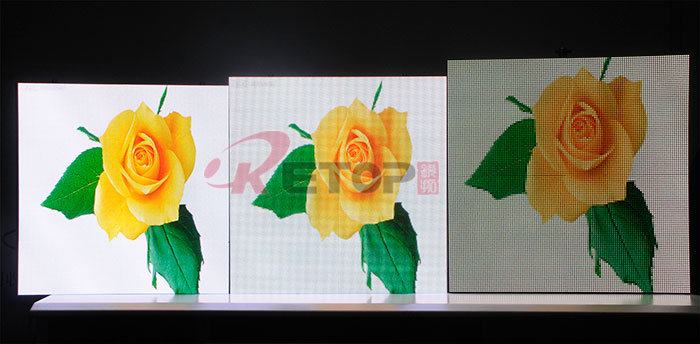

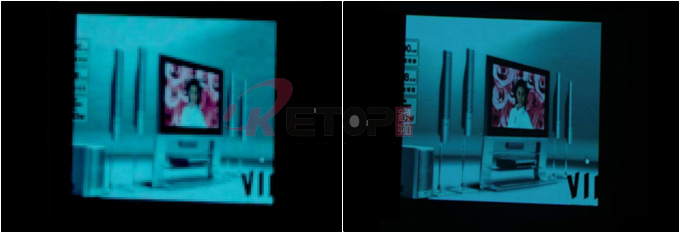

Comparison Chart before and after the Pixel-level Correction

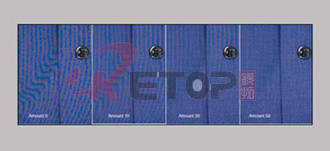

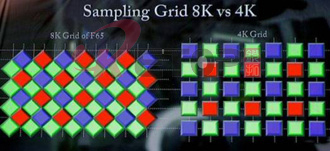

7. The product is applied with the distinctive moire processing technology. As to the CCD or CMOS image sensor, each pixel can only sense the intensity and not the color of the light. Through covering each pixel with a filter of different colors, the pixel can sense the light intensity of corresponding color, thus solving the problem.

Related Names
Large Size LED Panel for Opening Ceremony | Television Studio LED Screen | LED Video Display

High Precision LED Display, High Resolution High Definition LED Screen

Research and Development Background
Along with the application of high brightness LED display in the outdoor strong light environment, the large format seamless splicing technology is improved continuously. Then, the large format LED screen is increasingly applied not only in the large-scale events such as the Beijing Olympic Games, Shanghai World Expo and Guangzhou Asian Games but also in stadium, airport, station, bank, hospital, public square, commercial area, residential community, and more.

But as to the precision requirements for the indoor application, the ordinary LED screen is far less excellent than the projector equipment and television. Its display effect faces the unprecedented challenge in the case of watching in a close range.

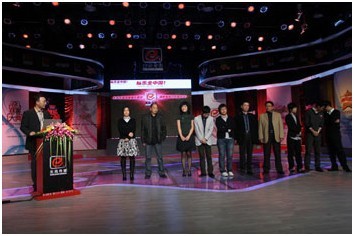

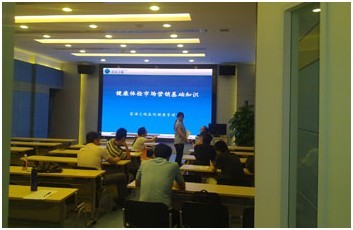

Thus, the high precision LED display, Retop high-end product with international leading level in the global market, is promising and has strong competitiveness to become the dark horse in the indoor display product market in the next few years. Our product contains the OTL2.5 type and OTL1.5 type with the pixel pitch of 2.5mm and 1.5mm respectively. It has an extensive application range concerning public information release platform, traffic monitoring and scheduling, military command authorities, video conference system, television studio, senior shopping mall, etc.

Model

OTL 2.5

OTL 2.0

OTL 1.5

LED

Type

SMD0404 LAMPS

SMD0404 LAMPS

SMD0404 LAMPS

Pixel Configuration

1R1G1B

1R1G1B

1R1G1B

LED Driving Method

1/32 dynamic scan

1/30 dynamic scan

1/32 dynamic scan

Resolution

96×64(W×H)

120×60(W×H)

160×64(W×H)

Pixel Pitch

2.5mm

2.0mm

1.5mm

LED Board Dimension

240×160×17mm

240×120×18mm

240×96×12mm

Board Quantity

6

8

10

Resolution

192×192(W×H)

240×240(W×H)

320×320(W×H)

Module Dimension

480×480×95mm

480×480×96mm

480×480×94mm

Module Area

0.2304m²

0.2304m²

0.21m²

Net Weight

9.2kg

9.2kg

9.2kg

Power Supply

AC220/110±10%,47~63Hz

Serviceability

Rear service

Max. Power Consumption

≤859.4W/m²

≤1069.4W/m²

≤1107.6W/m²

Average Power Consumption

≤257.8W/m²

≤320.8W/m²

≤332.3W/m²

Max. Current (208V, 60Hz)

3.9A

4.86A

5.03A

Horizontal Viewing Angle (Min. 50% brightness)

120º

Vertical Viewing Angle (Min. 50% brightness)

120º

Brightness

≥1,200cd/m²

≥1,900cd/m²

≥2,500cd/m²

Pixel Density

160,000/m²

250,000/m²

444,444/m²

Power Factor

﹥0.95

Certifications

UL, CE, ETL, ROSH, CCC

Contrast Ration

3,000:1

Operation Temperature

-20ºC to 60ºC

Operation Humidity

20% to 90%

Lifespan (50% Brightness)

100,000 hours

Processing

16bit

Colors

281 trillion

Refresh Rate

≥2,500Hz

Frame Rate

60fps

Brightness Level

Manually 100 levels, automatically 16 levels.
