Key Features

  • 2-Megapixel (1600 x 1200) high-definition resolution

  • Offers various 360°/180° video modes for panoramic wide-angle surveillance

  • IEEE 802.3af PoE compliant to simplify deployment and installation

  • Built-in microphone and speaker for 2-way audio communication

  • ePTZ function for digitally move and enlarge monitoring area

  • Supports motion detection and event notification via e-mail or FTP

  • Built-in Micro SD/SDHC card slot for local storage

  • Removable IR-cut filter for day and night surveillance

  • Compression: H.264/MJPEG

  • Dual power support: 12VDC/PoE (IEEE 802.3af)

  • Free 64-channel monitoring software included (supports iCamSecure App)



Product Overview
The LevelOne FCS-3091 is a H.264 2-Megapixel Fish-Eye camera that allows you to monitor all angles of a location using just one camera. The FCS-3091 features a fish-eye lens for a 360° panoramic wide angle view without blind spot.

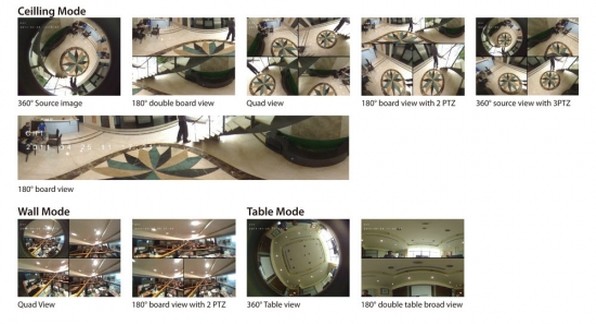

The panoramic coverage ability enables a cost-effective deployment, as less cameras need to be installed and with easy maintenance. It is a perfect solution for stores, schools, offices and lobby applications. The FCS-3091 hardware enables users up to 5 video layouts for ceiling mount, additional wall mount and table view applications.

The e-PTZ function without moving parts performs as a mechanical PTZ camera without Pan/Tilt to reduce costs. FCS-3091 provides built-in ICR (removable IR-cut filter) for day/night surveillance, 802.3af PoE, 2-way audio, built-in microphone and speaker, DI/DO alarm and Micro SD card for local storage.

Without installing any software, users can access live view and utilize functions such as motion detection and alert notification through the Web interface using an IE browser.

Free bundled 64-channel Management Software
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free IP CamSecure software coming allows you to monitor up to 64 IP cameras simultaneously on one screen to enhance scalability. For added convenience and flexibility, the software includes various advanced features such as scheduling recording, event alert, and heaps more. In addition, simply install our free iCamSecure App to your smartphone and connect to the PC with IP CamSecure software installed, you will easily turn your iPhone/Android smartphone into a portable surveillance system for real-time monitoring and snapshot.

Data Sheet
