Digitus Opti Arc


324362 / DN-16036

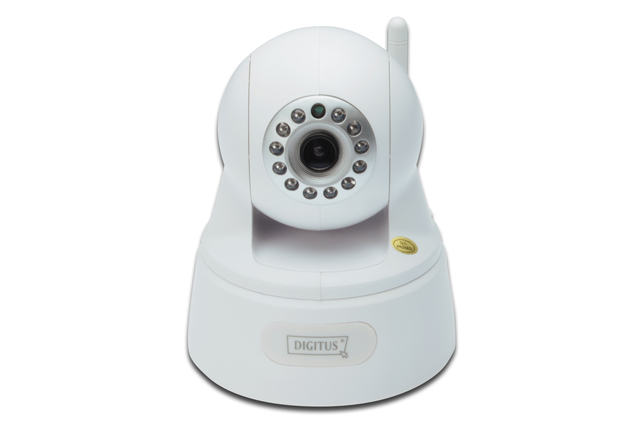

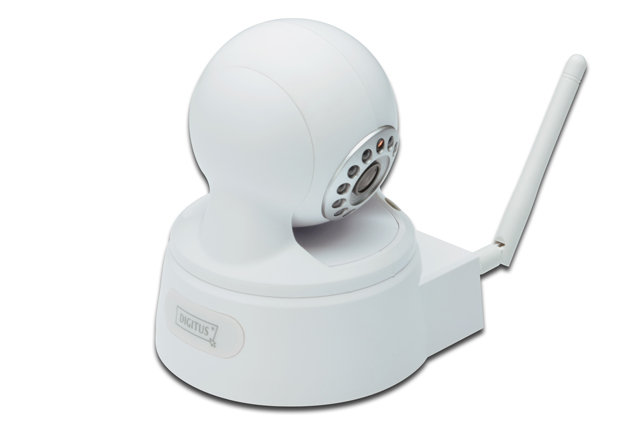

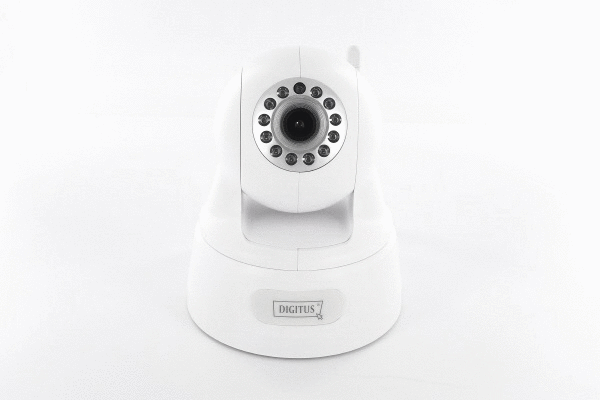

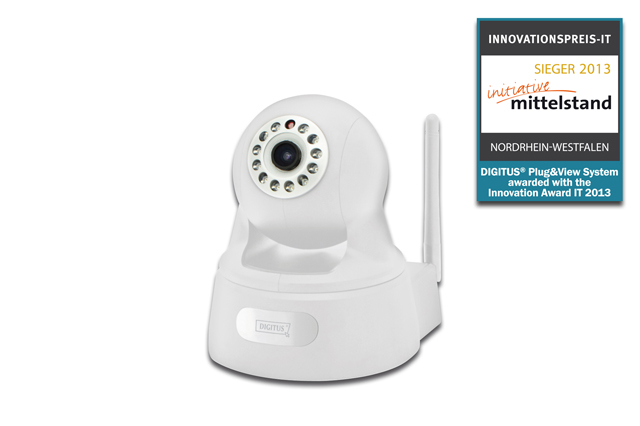

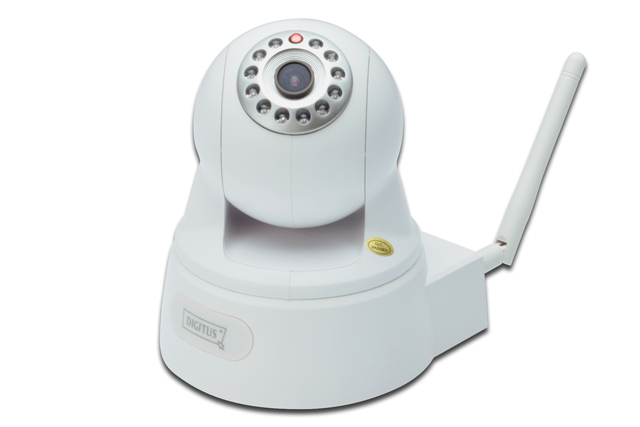

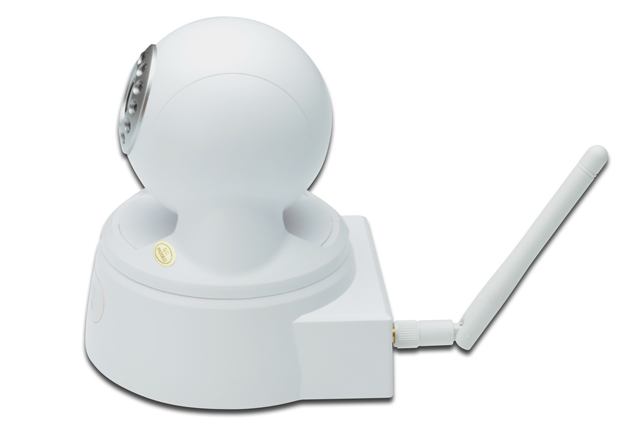

Experience a maximum overview with DIGITUS® Plug&View OptiArc. The tilting and swiveling spherical housing reminds you to an omniscient eye. And just as this you can use OptiArc. Whether mounted on the ceiling or placed in the living room, the OptiArc provides high quality images with 2 megapixel video resolution. The supplied mounting kit allows an easy installation. Receive the images of your “omniscient eye” with the DIGITUS® Plug&View app on your smart phone/tablet or with your favourite PC-browser. The installation is done in 3 easy steps: connect the camera to your network, scan the QR code with your smart phone or tablet and activate the camera. Everything just works with DIGITUS® Plug&View.

Technical details

  • 2 megapixel video resolution (UXGA 1600 x 1200, HD720 1280 x 720)

  • Motorized pan and tilt functions, controllable by network devices

  • Wireless LAN according to the newest 11n standard for fluent image transmission

  • Low-latency video streaming with H.264 compression format

  • Simple and fast installation with P2P support & QR-code-scanning

  • IR-LEDs and IR cut filter included for day & night surveillance

  • Supports 2-way audio

  • Supports

  • DN-16036_360photo_360deg view_20130624MicroSD card for local storage up to 32GB

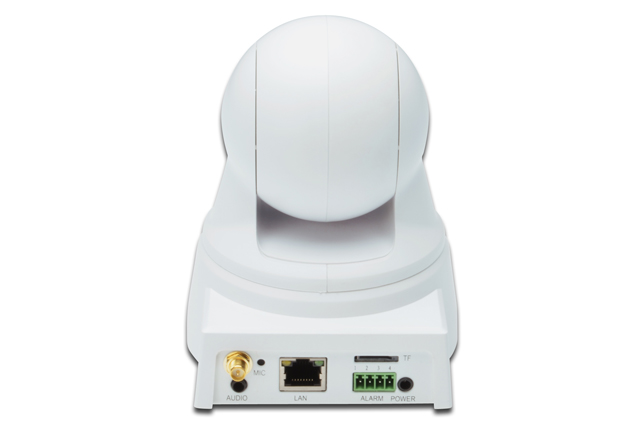

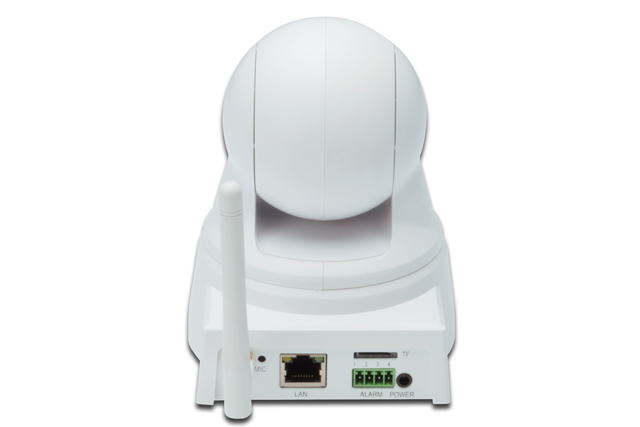

  • LAN Speed: 10/100Base-TX Ethernet

  • Powerful mobile surveillance supporting iOS and Android devices

  • Suitable for the most common browsers

  • Detachable antenna

  • Advanced motion detection – record and save events via Email/FTP-Server

  • Supports up to 25fps video frame rate at HD720 and 15fps at UXGA

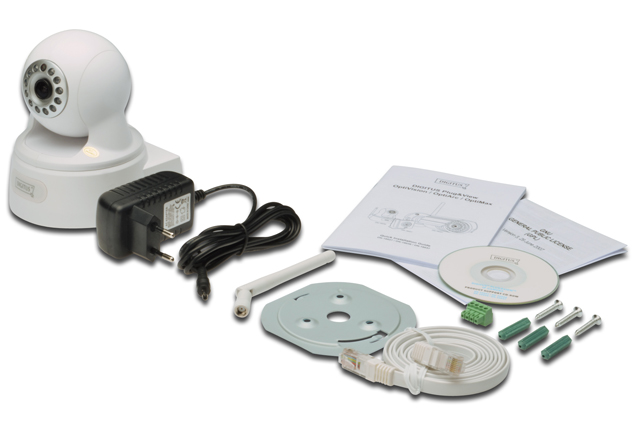

  • Easy mounting due to the included accessories

  • Supports DIGITUS® Plug&View App for smartphone and tablet PC access

  • Horizontal pan up to 270°

  • Vertical tilt up to 90°

  • Operating temperature: 0°C – 40°C

  • Power source (±10%): DC5V / 2A

  • Dimensions (mm): 100(L) x 99(W) x118(H)

  • Operating system independent, supports e.g. Windows, Mac OS and Sun

  • Lens: F1.5 f3.6mm

  • Horizontal viewing angle: 69°
