46" OLM Series - Bilmax Digital Solutions

Back Light Unit Type

CCFL

LED

Power Supply

Power Supply AC 100V - 240V [50/60Hz]

Max

200W

285W

150W

Typical

190W

260W

145W

Standby

3.0W

4.5W

3W

Luminance of White

450cd/m²

450cd/m²

700cd/m²

Contrast Ratio

4,500:1

3,500:1

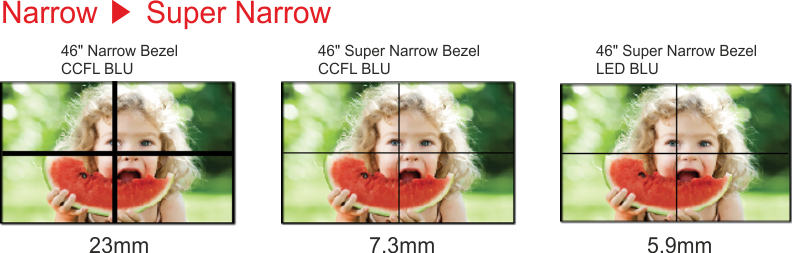

Seam Gap

7.3mm

5.9mm

Active Display Area

1018.353(H) x 572.544(V)mm

1018.08(H) x 572.67(V)mm

Aspect Ratio

16:9

Number of pixels

1366(H) x 768(V)

1920(H) x 1080(V)

Pixel Pitch

0.7455 x 0.7455 mm

0.53025 x 0.53025 mm

Display Colors

16.7M

Viewing Angle

H: 178°, V:178°

Response Time

8msec (G to G)

Temperature

5℃ ~ 35℃

Humidity

35% ~ 75%

PC/DVI Signal

VGA, SVGA, XGA, SXGA, UXGA, WXGA
480p, 576p, 720p(50/60), 1080i(50/60), 1080p(50/60)

HDCP

Ready/Not Ready/Ready

Frequency

H : 31.5 ~ 75kHz, V : 50, 60 Hz

Input

DVI-D x 1, PC x 1, Video x 1, RS-232C x 1, LAN x 1, Service x 1

Output

DVI-D x 1, PC x 1, Video x 1, RS-232C x 1

Lamp Life Time

Min 50,000Hrs (Ta:25±2℃)

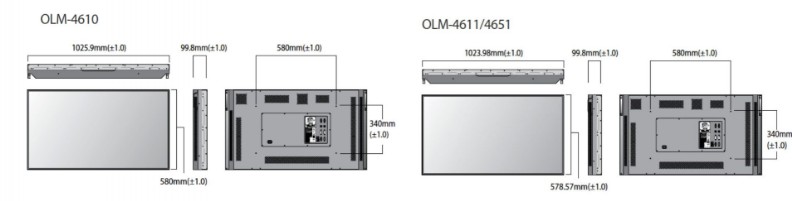

Dimension

1025.9 x 580 x 99.8 mm

1023.98 x 578.57 x 98,8 mm

Weight

24Kg(±0.5Kg)

25kg(±0.5kg)
