Key Features

  • 3-Megapixel (2032x1536) high-definition resolution

  • IEEE 802.3af PoE compliant to simplify deployment and installation

  • Built-in infrared LEDs for night viewing up to 20m

  • Removable IR-cut filter for day and night surveillance

  • Weatherproof IP66-rated housing

  • Compression: H.264/MPEG-4/MJPEG

  • Supports 3 video streams simultaneously

  • Digital input/output (1DI/1DO) for sensor and alarm

  • BNC connector for analog video output

  • Provides privacy masks for private area protection

  • Supports motion detection and event notification via e-mail or FTP

  • Easy Internet monitoring via configuration free Level1DNS™ service

  • Dual power support: 12VDC/PoE (IEEE 802.3af)

  • Free 64-channel monitoring software included (supports iCamSecure App)



Product Overview
The LevelOne FCS-5052 is a 3-Megapixel bullet network camera designed with IP66 weatherproof outdoor housing and video resolution of up to 2032x1536 The camera supports H.264/MPEG-4/MJPEG video compressions, providing an efficient and cost-effective means of surveillance for your business.

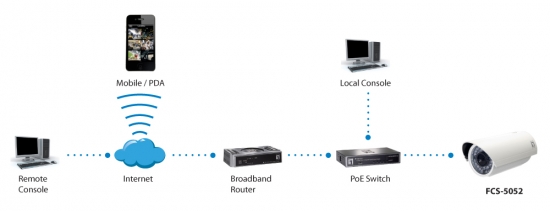

Together with 35 Infrared LEDs and a removable IR-cut filter, the FCS-5052 is perfect for delivering low-noise images in total darkness, at a distance of up to 20 meters. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology. It is also equipped with a BNC connector for analog video output and a digital input/output (1DI/1DO) for alarm and sensor.

In addition, we offer you a free Dynamic Level1DNS™ service, which is very useful if you don’t have a fixed public IP address, and provides you with an easy-to-memorize domain address.  The FCS-5052 is indisputably the best choice for 24 hour indoor/outdoor surveillance in areas such as parking lots, gas stations, school campuses and transport applications.

Free bundled 64-channel Management Software
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free IP CamSecure software coming allows you to monitor up to 64 IP cameras simultaneously on one screen to enhance scalability. For added convenience and flexibility, the software includes various advanced features such as scheduling recording, event alert, and heaps more. In addition, simply install our free iCamSecure App to your smartphone and connect to the PC with IP CamSecure software installed, you will easily turn your iPhone/Android smartphone into a portable surveillance system for real-time monitoring and snapshot.

Data Sheet
