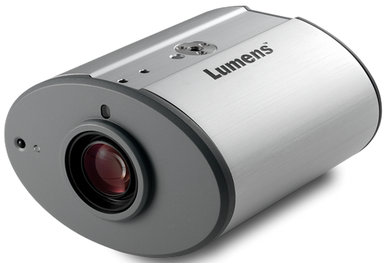

Celling Document Cameras - Bilmax Digital Solutions

Key Features

• Full HD 1080p high-definition output resolution


• One button optimization function


• Intelligent time stamp on saved files


• High-definition USB image transmission in real time


• Plug-and-Play, no need to install USB driver


• Customized video splash screen


• Projector type (DLP/LCD) select mode


• Free multi-functional cross platform software support


• Compatible with all major IWB brands


• Compatible with all interactive whiteboards


Zoom Capacity

25x optical zoom and 5x digital zoom

Output Resolution

XGA, SXGA, UXGA, WXGA, 1080p

Ethernet

for video streaming and remote control

Capture Area Max.

1200 x 900 mm (47.2" x 35.4")

Frame Rate

Up to 30 fps

Signal Output

VGA x 1, DVI x 1, USB x 1, Ethernet x 1

USB Flash Drive

Up to 32GB

Built-in Memory

120 JPEG images

USB Support

High Speed 2.0 (480 Mbps) Transmission

Video Recording

Standalone or via software

Image Capture

Single or continuous capturing (time lapse
photography) to internal memory, USB
flash drive, or to the computer via USB

Yes, Single button to adjust for best
possible images

Picture by Picture (PBP)

Slide Show

Automatically or manually

Full screen image rotation from 0, 90,
180, to 270 degrees

Enlarge any part of the image and pan it
by using the arrow keys

Color Reproduction

ΔE*ab 8.84 (mean)

SNR

52 dB

Sharpness

MTF 900 lines

kensington lock port on document
camera chassis

Podium View™ Software included

Support PC Windows 8, 7, XP, Vista
and Mac OSX; WIA & TWAIN interface

Weight

1.76 lbs  (0.8 Kg)

Dimension(LxWxH)

86x126x135 mm (3.4" x 5" x 5.3")
