New 6mm outdoor LED displays - Bilmax Digital Solutions

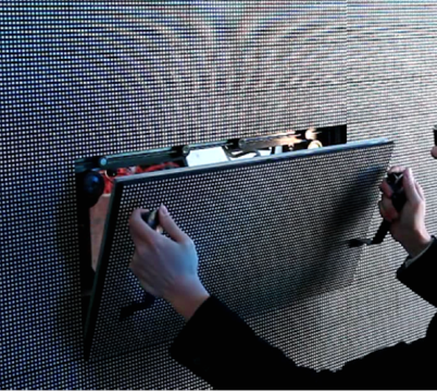

Module can be taken out easily front using special made tools.

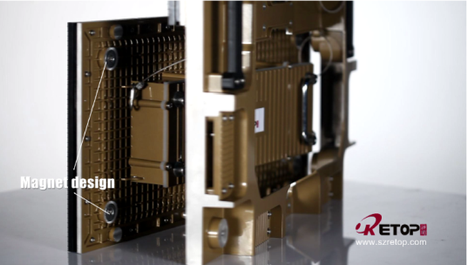

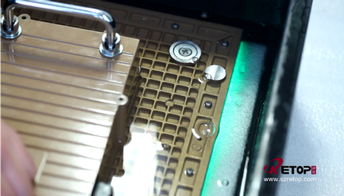

Magnet Design

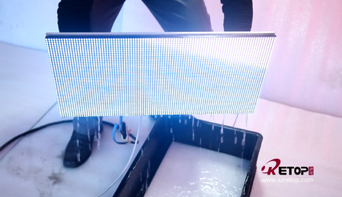

Fully Water Proof

Main features & benefits :
1. Fully waterproof. IP65 front and rear.
2. Brilliant LED module front service. You can take out the module front easily.

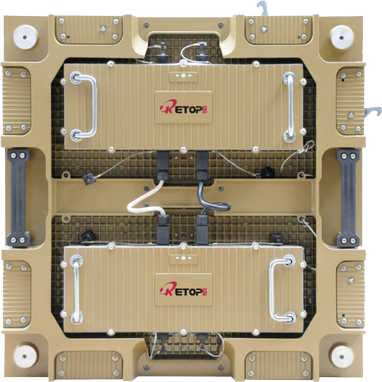

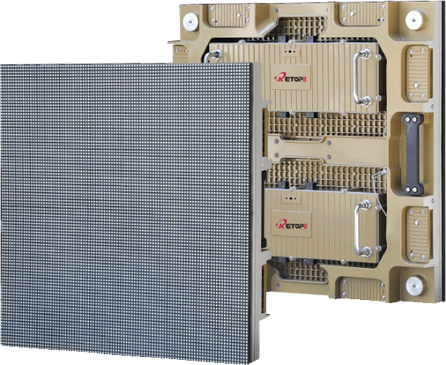

3. Die cast aluminum design. Seamless connection.
4. Hight brightness for outdoor applications.
5. SMT technology, fabulous color and uniformity.
6. Handel design.Easy maintenance and carry.
7. Simple support structure design for this cabinet. Saving structure
cost if you apply this cabinet into fixed installation.

Model

OTL 6.0

LAMP

LED Type

SMD3535 LAMPS

Pixel Configuration

1R1G1B

LED Driving Method

1/8 dynamic scan

Pixels

48×48(W×H)

Pixel Pitch

6.0mm

LED Board size

288×288 mm

LED Boards

2 x 1

Pixels

96×48 mm

Module Area

0.17 m2

Module size

576x288 mm

Power

AC220/110±10%,47~63Hz

Water Proof

IP65(Front)/IP65(Rear)

Serviceability

Front service

Max. Power Consumption

≤980W/m²

Average Power Consumption

≤343W/m²

Max. Current (208V, 60Hz)

5.24A

Horizontal Viewing Angle (Min. 50% brightness)

120º

Vertical Viewing Angle (Min. 50% brightness)

120º

Brightness

≥5,000cd/m²

Pixel Density

27,777/m²

Power Factor

﹥0.95

Certifications

UL, CE, ETL, ROSH, CCC

Contrast Ration

2,000:1

Operation Temperature

-20ºC to 50ºC

Operation Humidity

20% to 90%

Lifespan (50% Brightness)

100,000 hours

Processing

14bit

Colors

281 trillion

Refresh Rate

≥2,000Hz

Frame Rate

60fps

Brightness Level

Manually 100 levels, automatically 16 levels.
