WCS-6020

WCS-6020

Key Features


  • 2-Megapixel (1920 x 1080) high-definition resolution

  • Compatible with IEEE 802.11b/g/n wireless standards

  • Built-in infrared LEDs for night viewing up to 10m

  • Supports 355° pan and 135° tilt

  • Supports 2 video streams simultaneously

  • Compression: H.264/MPEG-4/MJPEG

  • Simple wireless connectivity and security with WPS push button

  • Removable IR-cut filter for day and night surveillance

  • Built-in microphone and external speaker for 2-way audio communication

  • Built-in SD/SDHC card slot for local storage

  • Dgital input/output (1DI/1DO) for sensor and alarm

  • Supports motion detection and event notification via e-mail or FTP

  • Free 64-channel monitoring software included (supports iCamSecure App)

OVERVIEW

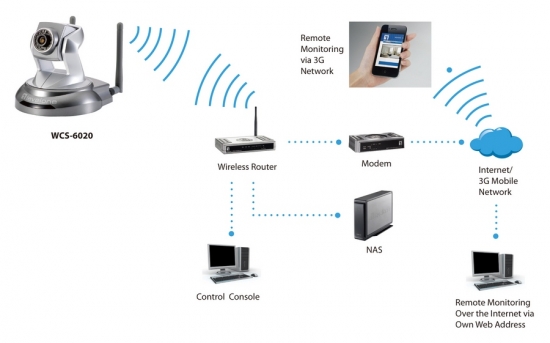

/ DIAGRAM

Product Overview
The LevelOne WCS-6020 is a quality yet cost-effective surveillance solution for the home and office. It is designed for easy and flexible installation, provides a choice of either a 150Mbps wireless or wired connection and a WPS (Wi-Fi protected setup) button to secure the wireless connection with just the push of a button, and the motorized Pan and Tilt provides a viewing angle of ±355° pan and ±135° tilt. Equipped with a 2-Megapixel sensor and built-in IR cut filter/IR illuminator LEDs, the camera provides high resolution quality and sharp sensitivity – ideal for security applications both day and night.

The WCS-6020 is equipped with many advanced features such as Level1DNS™ Service, DI/DO for external alarm and sensor, a micro SD/SDHC card slot and USB interface for local storage, built-in microphone and external speaker for 2-way audio communications.  Moreover, users can also set up 16 motion-detection regions with the camera, each with adjustable size and sensitivity. When motion is detected at the specified regions, the system can send an E-mail alert or send captured images via FTP upload to a designated storage server. The WCS-6020 is indisputably the top choice for reliable and high performance surveillance.

Free bundled 64-channel Management Software
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free IP CamSecure software coming allows you to monitor up to 64 IP cameras simultaneously on one screen to enhance scalability. For added convenience and flexibility, the software includes various advanced features such as scheduling recording, event alert, and heaps more. In addition, simply install our free iCamSecure App to your smartphone and connect to the PC with IP CamSecure software installed, you will easily turn your iPhone/Android smartphone into a portable surveillance system for real-time monitoring and snapshot.

Data Sheet
