Key Features

• High resolution for stunning clarity


• Full HD 1080p - 4700 Lumens


• Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands


• Extensive connectivity - HDMI, DisplayPort, 2 x VGA

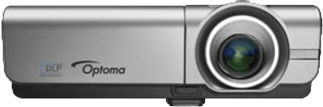

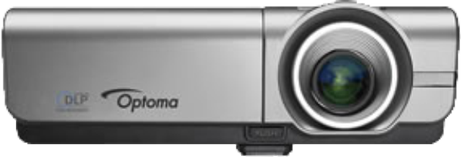

The Full HD EH500 produces crystal clear, bright images, perfect for a broad range of applications including technical, advertising media and medical training where detail really matters.

Full support for Crestron Roomview, Telnet, Extron IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the EH500 to be controlled across a network, keeping you in control, wherever you are

The environmentally friendly EH500 has energy saving features including <0.5W standby mode and auto power off saving you both time and money. Our unique Optoma Colour guarantee ensures hassle-free, long-lasting projection.

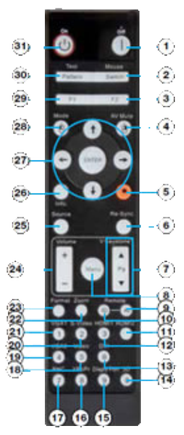

1. Power Off
2. Mouse
3. Function 2 (assignable)
4. AV Mute / right mouse button
5. Laser
6. Re-Sync
7. Page Up/Down
8. Menu
9. Remote code All
10. Remote code 01~99
11. HDMI 2
12. HDMI 1
13. DVI
14. 3D Mode
15. DisplayPort
16. Component Video
17. BNC
18. Composite Video
19. VGA 2
20. S-Video
21. VGA 2
22. Zoom
23. Format (aspect ratio)
24. Volume Up/Down
25. Source
26. Information Panel
27. Four Directional Select Keys
28. Display mode / left mouse button

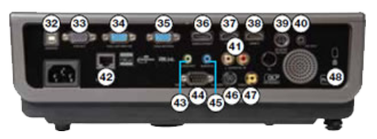

EH500 Connections

32. USB Remote Mouse
33. VGA Out
34. VGA 1
35. VGA 2
36. DisplayPort
37. HDMI 1
38. HDMI 2
39. 3D Sync
40. +12V Trigger (3.5mm)
41. Audio In (S-Video & Composite)
42. RJ45
43. Audio Out
44. RS-232C
45. Audio In (VGA, VGA 2, & Composite)
46. S-Video
47. Composite Video
48. KensingtonTM Lock

Exceptional Connectivity / Multiple Terminals

Single 0.65” 1080p DMD chip DLP® Technology by Texas Instruments

1080p 1920 x 1080

4700 ANSI Lumens

10,000:1

28dB

3.6

2 x HDMI, DisplayPort, 2 x VGA (RGB/YPbPr), S-Video, Composite, 2 x Audio In (RCA/3.5mm), Audio Out 3.5mm 3.5mm, VGA Out, RJ45, RS232, USB(Remote Mouse), +12v Trigger, 3D-Sync

UXGA 1600 x 1200

UXGA, SXGA, XGA, SVGA, VGA, Mac

PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)

1.07 Billion

F/2.5~2.76; f=23.5~28.2mm, 1.2x Manual Zoom

1.59 - 1.91:1

0.72 – 8.67m (28.41” - 341.28”) Diagonal 16:9

1.2 - 12m

1.2x Manual

16:9 Native, 4:3 Compatible

115%

15 - 91kHz

25 - 144Hz

310W

3500 hr / 2500 hr

± 30° Vertical

30W (2x15W stereo)

326 x 254 x 104 mm

Full function remote with laser pointer, mouse control and direct source selecting

100 – 240V AC @ 50 – 60Hz

370W BRIGHT mode <0.5W Standby mode, 320W STD mode <0.5W Standby mode

85% (centre)

Kensington Lock, Password Protection

Soft Carry Bag, Lens Cover, AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, Warranty Card

Ceiling Mount Kit, 3D Glasses

Compliant

Requires Optoma DLP® Link™ active shutter glasses – sold separately

Mandatory HDMI 1.4 3D formats,
120Hz frame sequential (up to 720p)

2 Years

19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech, Arabic, Turkish, Farsi, Romanian

5 Years

Yes

Easy Lamp Replacement, Crestron RoomView®, PJ-Link
