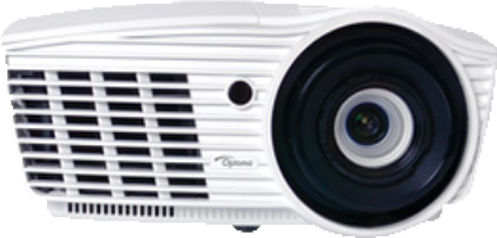

Optoma EH415
A compact and versatile package

Key Futures Specifications Downloads Galery

Key Features


  • High resolution for stunning clarity

  • Full HD 1080p - 4200 Lumens

  • Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands

  • Installation flexibility – Vertical lens shift and 1.6x zoom



Full HD 1080p clarity combined with vertical lens shift and amazing colours, make the compact Optoma EH415 projector an ideal candidate for both desktop and installation use.

Full support for Crestron Roomview, Telnet, Extron IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the EH415 to be controlled across a network, keeping you in control, wherever you are.

The environmentally friendly EH415 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money. Our unique Optoma Colour Guarantee ensures hassle-free, long-lasting projection.

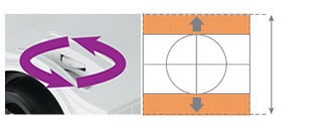

Easy installation - 1.6x zoom and lens shift

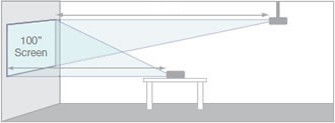

The EH415 can project a 100” diagonal image from any distance between 2.88m and 4.60m. The Lens Shift system can be used to adjust the vertical position of the projected image within the range detailed in the diagrams below.

When replacing existing projectors, the 1.6x zoom and Lens Shift systems greatly increase your installation flexibility.





DICOM simulation mode


*The EH415 is not suitable for use in medical diagnosis.

Eco+ mode

Dynamically adjusts the brightness and power consumption.

DICOM simulation mode

Designed specifically for larger meeting rooms and lecture theatres, the EH501 includes a special DICOMsim mode that has been specially tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training.*



*The EH415 is not suitable for use in medical diagnosis.


Clear, focused Images

DarkChip3™ from Texas Instruments, combined with Eco+ dynamic lamp technology produce a stunning 12,000:1 contrast ratio for pin sharp graphics and crystal clear text. Crisper whites, ultra-rich blacks makes images come alive and text easier to read - ideal for business and education presentations.


                                     12,000:1 Contrast Ratio

ECO AV mute

Stay in control of your presentation with the Eco AV mute feature. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also instantly reduces the power consumption to 30%, further prolonging the life of your lamp.

       Eco AV mute off              Eco AV mute on
100% Power consumption  30% Power consumption


3D Technology

Using the inherent speed of DLP® technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.

The EH415 supports multiple 3D formats from various devices such as PC, Blu-ray 3D™, Sony® PS3, Microsoft® Xbox 360 or 3D TV broadcast systems.




Image quality

A Full HD projector with 1920x1080 pixels has more than twice the resolution of an HD-Ready display. Fully compatible with HDTV broadcasts and high definition media, the EH415 is able to display un-scaled 1080p signals in their original form for use where exceptional clarity and detail are essential.







Environmentally friendly

To achieve the maximum 6500hrs2 lamp life, the projector should be operating in Eco+ mode and the auto power off feature should be enabled to automatically switch off the projector if it is accidentally left on. Enabling the <0.5W standby mode ensures the minimum energy consumption when the projector is not switched on.

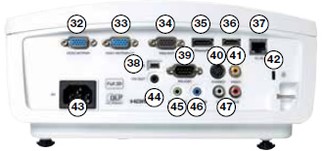

EH415 Connections


32.    VGA 2
33.    VGA 1
34.    VGA Out
35.    DisplayPort
36.    HDMI
37.    RJ45
38.    USB Remote Mouse
39.    RS-232C
40.    S-Video
41.    Composite Video
42.    Kensington™ Lock
43.    Power
44.    +12V Trigger (3.5mm)
45.    Audio Out
46.    Audio In (VGA 1 and 2)
47.    Audio In (S-Video and Composite)


System integration and control

Using the free Crestron Roomview software, multiple EH415 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails. Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.

The web browser interface and full support for Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the EH415 to be controlled across a network, reducing installation costs and keeping you in control, wherever you are. While RS-232 connectivity ensures legacy support for existing control systems.




Easy lamp replacement

In applications requiring smooth continuous operation, minimising service time is essential. The EH415 lamp can quickly be replaced without the need to remove the projector from where it is installed.



+12v Trigger

Power on both your projector and screen at the touch of a single button. For ultimate convenience, connect an Optoma electric screen directly to your EH415.




Extra features

Direct & Signal Power ON - Start up time can be significantly reduced if standby mode is bypassed, eliminating the need to use the ‘Power’ button on the remote control or the projector keypad.

Direct Power ON switches the projector on when the power cable is inserted into an active power outlet.

Signal Power On switches the projector on when an active VGA source is connected to the unit.

Key pad lock – once enabled prevents unauthorised adjustments ensuring the projector can only be controlled via the remote control.

Logo capture - customise your start up screen


Easy to use remote with laser pointer, mouse control and 1.2kg direct source selection
