FCS-5061

FCS-5061

Key Features


  • 5-Megapixel (2592 x 1944) high-definition resolution

  • Weatherproof IP66-rated with wide operating temperature (-40°C to 50°C) for harsh environments

  • IEEE 802.3af/at PoE compliant to simplify deployment and installation

  • Built-in infrared LEDs for night viewing up to 30m

  • Features 3DNR (3-Dimension Noise Reduction) to produce extremely clear picture quality even under low light condition

  • Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments

  • Compression: H.264/MJPEG

  • BNC connector for analog video output

  • Digital input/output (1DI/1DO) for sensor and alarm

  • Built-in Micro SD/SDHC card slot for local storage

  • Supports IPv4/IPv6 network operation

  • Dual power support: 24VAC/PoE (IEEE 802.3af/at)

  • Free 64-channel monitoring software included (supports iCamSecure App

OVERVIEW

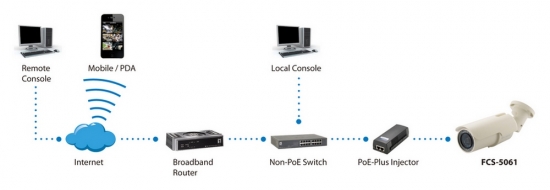

/ DIAGRAM

Product Overview
The LevelOne FCS-5061 is a Day/Night 5-Megapixel PoE-Plus Outdoor Camera is designed for flexible surveillance installation under the most demanding weather conditions. This camera is installation ready with an IP66-rated weather proof outdoor enclosure, built-in heater for -40°C to 50°C harsh environments 24 hours surveillance.

Together with 23 Infrared LEDs and a removable IR-cut filter, the FCS-5061 is perfect for delivering low-noise images in total darkness, at a distance of up to 30 meters. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet Plus (PoE+) technology. It is also equipped with one BNC connector for analog video output and one digital input/output (1DI/1DO) for alarm and sensor.

Supports video resolution of up to 2592x1944 with H.264/MJPEG video compression. It simultaneously supports 4 individual video streams for consistent quality viewing. Featuring 3DNR (3-Dimension Noise Reduction) and WDR (Wide Dynamic Range) technology, the LevelOne FCS-5061 maintains the highest image quality for ski resorts, mountain patrol stations, northern border crossings, cell towers and other outdoor applications in extreme cold regions.

Exceptional Image Quality
With built-in 3DNR (3–Dimension Noise Reduction) and WDR (Wide Dynamic Range) technology, the camera is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

Free bundled 64-channel Management Software
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free IP CamSecure software coming allows you to monitor up to 64 IP cameras simultaneously on one screen to enhance scalability. For added convenience and flexibility, the software includes various advanced features such as scheduling recording, event alert, and heaps more. In addition, simply install our free iCamSecure App to your smartphone and connect to the PC with IP CamSecure software installed, you will easily turn your iPhone/Android smartphone into a portable surveillance system for real-time monitoring and snapshot.

Data Sheet
