OVERVIEW

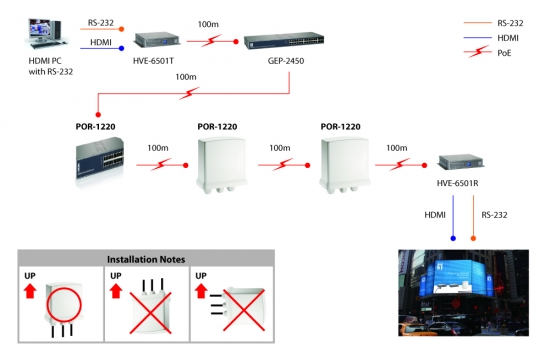

/ DIAGRAM

Extend the reach of your Gigabit PoE-Plus devices
For system integrators looking for a professional solution to help extend their Outdoor Gigabit PoE (802.3af/at) network, POR-1220 is the perfect accessory to increase your network performance.

Normal cable runs only reach 100 meters, but with POR-1220 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.

* Maximum distance depends on the required Wattage of the PD.

Simple yet durable, no software required
As a Gigabit PoE-Plus Repeater, POR-1220 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that POR-1220 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. POR-1220 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation, that boosts and extends the device an additional 100 meters. With a durable metal housing, POR-1220 fits into any tight deployments.

Applications
POR-1220 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.

IP65-compliant
The POR-1220 is compliant to IP65, and is therefore weatherproof from snow, rain, storms, desert heat, etc. For deployment in any harsh weather conditions, this PoE Repeater is up to the challenge.

Power:
PoE Power Input: 44-57 Volt
Power Consumption: 2.5W (Max.)
