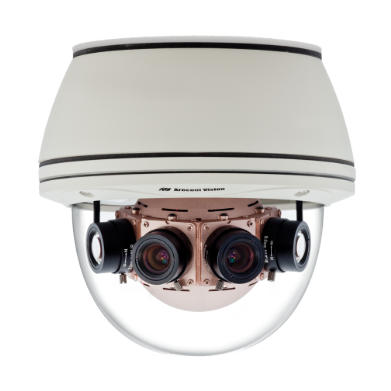

The AV8185 SurroundVideo® series network camera is a dual encoder (H.264 & MJPEG), 8 Megapixel resolution, IP addressable 180 degree panoramic IP camera. The AV8185DN SurroundVideo® camera line provides an all-in-one solution with integrated four high sensitivity 2 megapixel sensors, 8mm lens, vandal resistant dome enclosure with rated IP66 for water and dust protection, and optional heater/blower. Using MegaVideo® technology, these cameras offer bandwidth and storage efficiency of up to 10X on average over traditional megapixel counterparts. The AV8185 is a PoE (IEEE 802.3af) compliant camera with Color, Day/Night and optional heater & blower configurations. Built with Arecont Vision’s proprietary massively-parallel MegaVideo® technology, the AV8185DN has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming.

SPECIFICATIONS

Resolution
8.00 MP


Frame Rate
6.0

Mechanical

• Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt


• Hard ceiling mount and surface mount embedded


• Die-cast aluminum chassis with 5.5” vandal resistant polycarbonate dome bubble


• Conduit 3/4” NPT standard


• Total Unit dimensions:


• Ø6.9 x 6.55 in (H), bubble only: Ø5.5 x 3.4 in (H)


• Ø175 x 166 mm (H), bubble only: Ø140 x 87 mm (H)


• 3.81 lbs (1.75 kg)


Data Transmission

• Video frame rate up to:


• 6 fps @ 6400x1200


• Compression type:


• H.264 (MPEG4, Part 10)


• Motion JPEG


• 21 levels of quality


• TFTP, HTTP, RTSP, RTP over TCP, RTP over UDP image transmission protocols


• 100Base-T Ethernet Network Interface


• Bit rate control from 100Kbps to 10Mbps


• Multi-streaming: 8 non-identical streams


Regulatory

   FCC, CE, UL


Programmability

• +/- 5 ° Electrical Vertical Alignment to adjust sensor position


• Privacy mask


• Auto Exposure (AE) and Gain Control (AGC) >120dB


• On-camera real-time motion detection with 1024 detection zones


• Auto backlight compensation


• Auto multi-matrix white balance


• 50/60Hz selectable flicker control


• Electronic pan, tilt, zoom (PTZ)


• Electronic image flip - 180 degree rotation


• Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264


• Programmable shutter speed to help control motion blur


• MoonLight™ mode - extended exposure and proprietary noise cancellation


• Programmable resolution, brightness, saturation, gamma, sharpness, tint


• Picture-in-Picture: simultaneous delivery of full field of view and zoomed images


• Bandwidth & storage savings by running at 1/4 resolution


Product Imaging

• Four 2 megapixel CMOS image sensors


• 1600(H) x 1200(V) pixel array each sensor


• ½” optical format


• Bayer mosaic RGB filter


• Minimum illumination of:


• Color: 0.2 lux @ F2.0


• Day/Night: 0 lux, IR sensitive


• Dynamic range 61 dB


• Maximum SNR 50 dB


• Moonlight™ mode - extended exposure and proprietary noise cancellation

Full Field of View (FOV) Resolutions
6400(H)x1200(V) 8 megapixel total
3200(H)x600(V) 2 MP total (1/4 resolution)




Cropped Resolution
3200(H)x600(V)











Electrical

General purpose opto-coupled input and output
Power over Ethernet (PoE): PoE 802.3af for camera
Auxiliary power 12-48V DC, 24V AC
Power consumption: 9 Watts DC power









Standard

   RoHS, REACH, IK-10, IP66


Environment

Operating temperature: -40°C (-40°F) to +50°C (122°F) w/ Heater
Humidity: 0% to 90% (non-condensing)
Stable image temperature: 0°C (32°F) to +50°C (122°F)
Storage temperature: -30°C (-22°F) to +60°C (140°F)
