46" DS46LX2

46" Video Wall Super Narrow Bezel LCD

DS46LX2

KEY FEATURES

  •    Super narrow bezel for video wall applications

  •    Open Pluggable Specification (OPS) ready

  •    LED backlit

  •    All metal / aluminum construction

  •    Video daisy chaining

  •    Proofing of image retention

  •    VESA mounting compliance

  •    RJ45 connection for diagnostics

  •    Industrial-grade, superior reliability





FUTURES SPECIFICATIONS ACCESSORIES DOWNLOADS

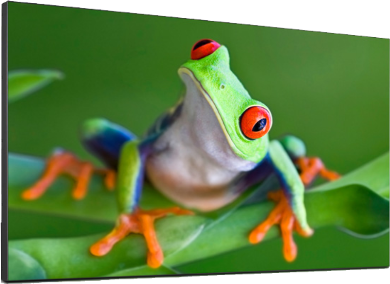

The DS46LX2 is a 46 inch super narrow bezel LED backlit LCD featuring HD resolution ideal for tiled video wall applications. With a super narrow 1.8 / 3.2 mm bezel, multiple screens can be placed side by side to produce a near seamless image.

Super Narrow Bezel for Video Walls

The DS46LX2 features an ultra slim 5 mm bezel-to-bezel dimension for video wall applications.  With built-in video daisy chaining, a single 1080p source can be used on video walls without the need for any additional external video wall controller. With an efficient LED back light, these displays are ideal for typical indoor environments.

LED Backlit

LED back lighting is both more energy efficient and provides a much brighter image than traditional CCFL backlights. Due to the compact nature of LEDs, displays are also typically thinner. DynaScan utilizes a proprietary, patented LED local dimming backlighting technique. Darker areas of an image receive less backlighting than lighter areas resulting in incredible contrast and color.
Auto Brightness Control

Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.


Full HD Resolution

With a resolution of 1920 x 1080 Full HD, the DS551LX2 provides a super sharp image for easy to read text and incredible detail.
