Optoma EX785
Bright Projection

Key Futures Specifications Downloads Galery

Key Features


  • Custom Installation - Full Lens-Shift & Lens Options

  • XGA - Ultra bright 5000 ANSI Lumens

  • Premium network monitor & control - Crestron Roomview support

  • Extensive connectivity - HDMI, DVI, 5BNC, 2 x VGA


The Optoma EX785 has almost limitless installation possibilities, its combination of high performance and brightness
means it achieves perfect images in most environments.
Using centre lens design, full lens shift and interchangeable lens options, the flexible and powerful EX785 is a truly versatile installation solution.
Boasting an astounding 5000 ANSI Lumens, perfect for conferencing facilities, large auditoriums, halls and bars,
its true brilliance must be experienced. Meeting the highest standards of installation projectors, the EX785 creates
seamless, smooth and radiantly bright corporate presentations, videos and movies.


† 3D Technology

Using the inherent speed of DLP technology, The Optoma EX785 can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.

The 3D features of the EX785 can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling software. Currently the EX785 does not support 3D TV broadcast systems, SKY in the UK or 3D Blu-ray, though support for these applications may be added in future using additional hardware.

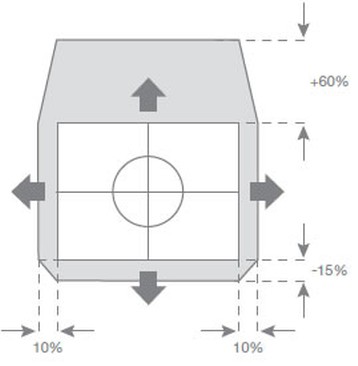

Lens Shift
The EX785 handles a variety of installation challenges that come with large halls, conferencing facilities, auditoriums and bars. Lens shift aligns the projected images centrally on screen and can be adjusted horizontally or vertically without moving the unit.



Lens

The centred lens design allows greater flexibility, ensuring the projector can be easily installed.


Optional Lenses

Easily attached short and long throw lenses give you the option to install the EX785 in different sized locations.

The short throw lens with a throw ratio of 0.8:1 is ideal for rear-projection installations.

The STD throw lens with a throw ratio of 1.6 – 2.0:1 is ideal for standard installations

The long throw lens with a throw ratio of 2.0 – 3.0:1 is ideal for large conference rooms, auditoriums and any other large venue.

Extensive Connectivity

This native XGA projector accepts a wide variety of computer and video input signals. Connectivity includes: 5BNC, HDMI, DVI-D, Component Video, dual VGA (with SCART and YPbPr support), S-Video and Composite.

Five audio inputs for individual PC and video connections enable the EX785 to function as an audio switcher and volume controller, thereby eliminating complicated and costly additional audio hardware and cabling.

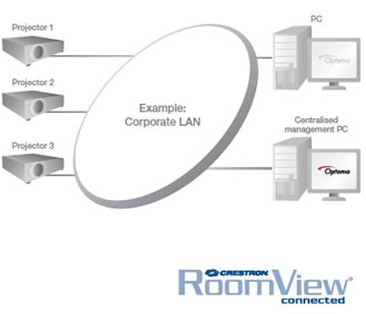

Crestron RoomView® - NETWORK CONTROL

RoomView® software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

  • Manage up to 250 projectors at the same time (via master PC).

  • Control and alter the projector settings using a simple web browser page, including OSD menu control.

  • Set up email alerts for warning messages.

  • Ideal for large installations in both in the educational and business environments.
