Display Technology |
DLP |
Native Resolution |
1080p 1920 x 1080 |
Brightness1 (Bright Mode) |
3200 ANSI Lumens |
Contrast |
20,000:1 |
Noise Level (Eco mode) |
26dB |
Weight (kg) |
3.1 |
I/O Connectors |
2 x HDMI (1.4a 3D support), 2 x VGA (RGB/YPbPr), Composite, 2 x Audio In 3.5mm, Audio Out 3.5mm, VGA Out, RS232, 3D-Sync |
Maximum Resolution |
1080p |
Computer Compatibility |
UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
Video Compatibility |
1080p, 1080i, 720p PAL, NTSC, SECAM |
Projection Lens |
F/2.55~2.86; f=22.37~26.73mm, 1.2x Manual Zoom |
Throw Ratio |
1.5 - 1.8:1 |
Projection Screen Size |
0.77 - 9.19m (30.15" - 361.75") Diagonal 16:9 |
Projection Distance |
1.2 - 10m |
Zoom Type |
1.2x Manual |
Aspect Ratio |
16:9 Native, 16:10/4:3 Compatible |
Offset |
116% |
Horizontal Scan Rate |
15.375~91.146 KHz |
Vertical Scan Rate |
24~ 85 Hz (120Hz for 3D) |
Lamp Type |
240W |
Lamp Life (Eco/Bright Mode) |
6,000/3.500 |
Keystone Correction |
± 40° Vertical |
Audio |
16W stereo (2x8W) SRS WOW HD audio processing |
Dimensions (W x D x H) |
324 x 234 x 97 |
Remote Control |
Full function remote with direct source selecting and backlight |
Power Supply |
100-240V, 50-60Hz |
Power Consumption |
297W BRIGHT mode < 0.5W Standby mode, 241W ECO mode < 0.5W Standby mode |
Operating Conditions |
5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m |
Uniformity |
80% |
Security |
Security Bar, Kensington Lock, Password Protection |
Standard Accessories |
Lens Cover, AC Power Cord, Back-lit IR Remote Control with Batteries, Quick Start Card, CD User Manual, Warranty Card |
Optional Accessories |
Ceiling Mount, Screen |
RoHS |
Compliant |
3D Support |
The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
3D Compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
3D Viewing |

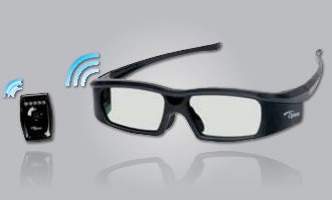

Requires ZF2100 system - available separately |
Speaker |
16 Watts |
Warranty |
2 Years |
On Screen Display |
19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi, Arabic |
Optional Wireless |
No |
Features |
Full 3D 1080p Support, Dynamic Black |
1-) Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime.
2-) Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions |
