OVERVIEW

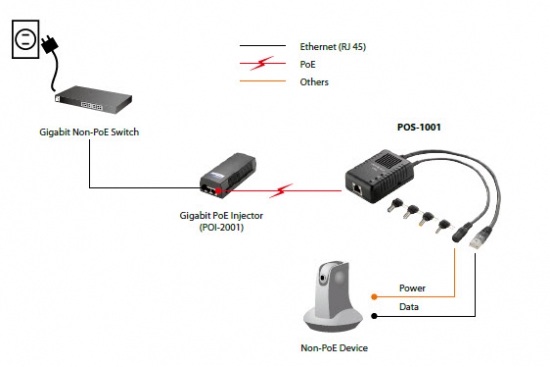

/ DIAGRAM

The LevelOne POS-1001 Gigabit PoE Splitter splits a networked PoE Signal into separated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V or 9V or 12V). Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

Power:
Output Power Voltage:
5V (2A), 9V (1.1A), 12V (0.85A)
DC Pin:5.5*2.5*12 mm (White) / 5.5*2.1*12 mm (Blue) / 4.8*1.7*12 mm (Yellow）/3.5*1.3*12(Red)mm, (L-300mm)
Input Power Requirement:
Pin Assignment and Polarity: 1/2(+), 3/6 (-) or 4/5(+), 7/8(-)
