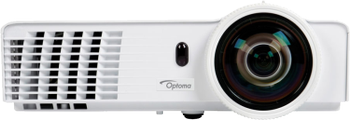

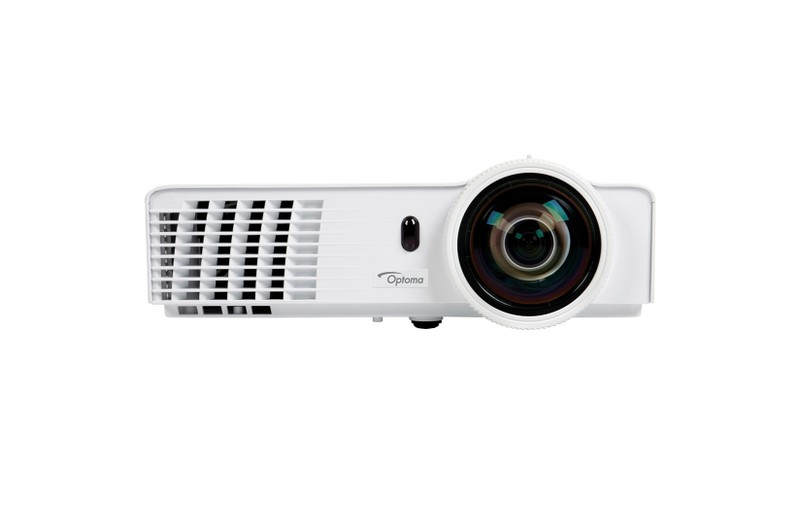

Optoma W306ST
3D projection in the smallest of rooms with the W306ST

Key Futures Specifications Downloads Galery

Key Features

  • Native WXGA, 60” image from just 68cm away


  • Bright images, vivid colours – 3600 ANSI Lumens


  • Up to 6000 hours2 lamp life and 70% energy saving


  • Crestron RoomView® – RJ45 control and monitoring


3D projection in the smallest of rooms with the W306ST

The WXGA short throw, Full 3D W306ST at 3600 ANSI Lumens is designed to display bright, rich, colourful, crystal-clear images for both the education and business environments.

Captivate your audience, increase their learning potential and help improve results with lessons in crystal clear 2D or incredible 3D.

Designed with the user in mind, the W306ST incorporates extensive connectivity, powerful 10W stereo speakers and Crestron RoomView® control to maintain and monitor the projector over the network.

Perfect for installations with interactive whiteboards ensures teaching and business environments have the right tools for engaging and presenting to their audience without shadows and screen glare.

Incredible lamp life of up to 6000 hours combined with Eco+ technology provides energy and money saving features.

Green Solutions

Eco+ technology from Optoma increases our commitment to reducing the impact we all make on the environment

Eco+ Mode

Saving energy, saves money! Eco+ technology reduces the power consumption to as little as 30%. This intelligent feature also has a positive effect on the lamp life, increasing it up to 70% while lowering the total cost of ownership and reducing maintenance.



Dynamically adjusts the brightness and power consumption


           Bright scene                                 Dark scene
~100% power consumption     ~30% power consumption


Auto Power Off

There may be instances when the projector is left running when not in use. To help save energy if the projector is left running and no source is detected, the “Auto Power Off” feature automatically turns off the projector after a set period of time.

Eco AV mute

Stay in control of your presentation with the Eco AV mute feature. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also instantly reduces the power consumption to 30%, further prolonging the life of your lamp.


       Eco AV mute off                  Eco AV mute on
  100% power consumption     30% power consumption


Cost Saving - Long Lamp Life

To achieve the maximum 6000hrs2 lamp life, the projector should be operating in Dynamic mode and the auto power off feature should be enabled to automatically switch off the projector if it is accidentally left on. Enabling the <0.5W standby mode ensures the minimum energy consumption when the projector is not switched on.


We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. Naturally, energy efficiency and being recyclable are built in at the design stage. With each new product, we strive towards minimising our environmental impact. For full details of Optoma Project Green please visit our website.

Colour Guarantee

We are so confident that the image colour quality of our projectors will remain as good as the day you bought it that Optoma will guarantee it for five years.



Bright, Detailed and Colourful Projection

Grab your audience’s attention with bright, vivid projected images thanks to the BrilliantColor™ technology incorporated within the W306ST.

Preset display modes allow you to achieve a perfect image on a variety of surfaces including screens and interactive whiteboards

Inspire Your Students

Teaching in 3D is the latest innovation in education technology, opening up new avenues of learning for both educators and students alike. Engage and inspire your students with lessons taught in 3D – explore the world, travel through space, see inside the body and bring new ideas to life. Optoma 3D projectors take teaching to a whole new level of immersion and enjoyment… at no extra cost!

How does 3D work?
Using the inherent speed of DLP® technology, Optoma 3D Ready projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D.

The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.

The X306ST supports multiple 3D formats from various devices such as PC, Blu-ray 3D™, Sony® PS3, Microsoft® Xbox 360 or 3D TV broadcast system.

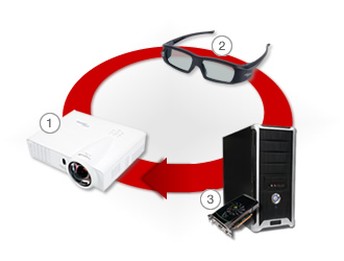

What you need

  • Optoma W306ST

  • Optoma ZD301 3D glasses

  • PC and 3D educational software

Short Throw Lens

The W306ST can project an impressive 60” diagonal image from just 68cm from the screen. Standalone or wall mounted, the W306ST eliminates shadows on the screen and allows you to present with ease.

Clear, Focused Images

Lessons in the classroom and presentations in the boardroom demand sharp, flawless images. DarkChip3™ technology from Texas Instruments produces a stunning 18,000:1 contrast ratio for pin sharp graphics and Crystal-clear text. Crisper whites & ultra -rich blacks make images come alive and text easier to read.

To retain image clarity, Optoma projectors are designed with DLP® technology preventing degradation over time to give consistent pixel performance.


         Low contrast                      DarkChip3

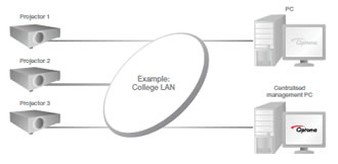

Crestron Roomview® - Network Control

RoomView® software provides a custom configurable interface to power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.

  • Schedule the projectors to power up/down saving time, money and extending the life of the lamp.

  • Control and alter the projector settings using a simple web browser page including menu control.

  • Send alerts for warning messages.

  • Reduce maintenance time by automatically receiving emails for lamp replacements.




RS232 Control

The extensive RS232 command set makes it simple and easy to control the X306ST with any RS232 control system.

AMX Compatibility

Dynamic Discovery Protocol is incorporated into the X306ST. This feature allows for easy installation with AMX control systems.


Extra Features

Direct power on - start up time is significantly reduced as standby mode is bypassed when the power cable is inserted into an active power outlet. This eliminates the need to use the ‘Power’ button on the remote control or the projector keypad.

Auto power off - if after a pre-determined time the projector does not receive a signal, it will turn itself off automatically, conserving power and extending the life of the lamp.

Keypad lock - once enabled, prevents unauthorised adjustments ensuring the projector can only be controlled via the remote control.
