AV12186DN

AV12186DN

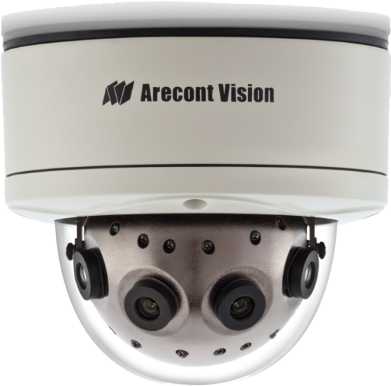

12 Megapixel 180˚ WDR Panoramic IP Camera, 5.2 fps, Day/Night,
5.4mm f/2.0 IR Lens, IP66, IK-10 Vandal Resistant Dome






All-in-one Arecont Vision SurroundVideo® 180° and 360° panoramic cameras integrate four sensors with IR corrected lenses in an IP66 / IK-10 dome. 8-, 12-, 20- or 40-megapixels at fast frame rates. H.264 compression for bandwidth and storage reduction. Day/Night or Color-only models. Wide Dynamic Range (12MP). Binning mode (12MP, 20MP and 40MP).

Description

  •  World’s First 12MP, H.264, Wide Dynamic Range, 180° Panoramic Megapixel Camera

  •  WDR up to 100dB allowing users to see clearly in shaded and bright areas of the scene simultaneously

  •  All-in-one H.264 SurroundVideo® Solution

  •  True Wide Dynamic Range Imaging

  •  Day/Night Functionality with Removable IR Cut Filter

  •  Dual Encoder H.264/MJPEG

  •  Privacy Mask

  •  Motion Detection

  •  Forensic Zooming

  •  Flexible cropping

  •  Bit Rate Control to limit bandwidth

  •  Binning Mode to Increase Sensitivity

  •  Multi-Streaming

  •  New Smaller Vandal-resistant housing with IK-10 and IP66 rated Dome

  •  Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt

  •  Mounting options include pendant mount, wall mount, corner mount, pole mount, junction box adapter and electrical box adapter

  •  PSIA Conformant


  •  PoE and Auxiliary Power: 12-48VDC/24VAC

  •  Reduced Overall System Cost

Futures Specifications

FUTURES
The AV12186DN SurroundVideo® series network camera is WDR (wide dynamic range), dual encoder (H.264 & MJPEG), 12 Megapixel resolution, 180 degree panoramic Day/Night IP camera, designed to provide an all-in-one solution with integrated four 3 megapixel WDR sensors, four 5.4mm M12 lenses, IK-10 vandal resistant dome and housing, rated IP66 for water and dust protection. The AV12186DN is a PoE (IEEE 802.3af) compliant Day/Night camera, featuring WDR switch control, PSIA compliance, privacy masking, extended motion detection and flexible cropping. Built with Arecont Vision’s proprietary massively-parallel MegaVideo® technology, the AV12186DN has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming. Binning technique improves low-light performance, increases sensitivity and produces better SNR by combining and averaging pixels. This camera offers over ten times the resolution of standard resolution IP cameras with the ability to output full real time frame rates.
