Highlights

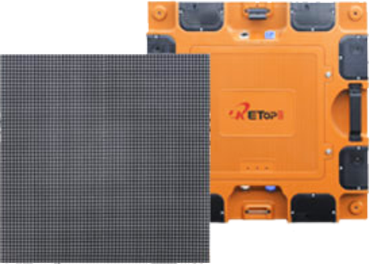

1. Light Weight of only 12.5kg per module
Designed and manufactured with rather high standard, the module is slim and light in weight of only 12.5kg. With the dimension of 576mm (W) × 576mm (H) × 80mm (D), the Premium-OTL6 module is simple to install and maintain.

2. Innovative Fast Locking System
Due to the specially designed fast locking system, the 6mm SMD outdoor module can be installed and dismantled quickly. There are four pairs of fast locking device on the cabinet to achieve horizontal and vertical joining with the adjacent modules. The robust stainless steel fast locking device can achieve firm fixation of the modules, resulting in the seamless image display effect.

3. Front Servicing for LED Board
The servicing for the 6mm outdoor rental LED display can be conducted by removing the LED board from the front, providing two choices of getting to the electronics from the front or the back.

4. High Brightness up to 6500nit
By reason of the high contrast ratio of 2000:1, the high brightness outdoor image would attract the eyes of people in long or short distance. The 6500nit brightness of the product can keep the LED screen staying in bright state for a long time with the continuous service time being up to 1000,000 hours. Combined with the high quality 3-in-1 SMD 4040 LED, full color display and pixel-level brightness calibration, the product delivers the image with unmatched effect.

5. Efficient Thermal Management
Without the fan, the 6mm outdoor rental LED display operates with rather low noise. The cover of the module is specially designed as a heat sink to play the function of heat dissipation to guarantee the product with long lifespan. The heat generated by the internal electronics is radiated through such heat sink. Owing to the advanced thermal management design and weather proofing, the protection rating for the front and the back reaches up to IP65.

The product can be applied not only for rental application but also for fixed installation to present the unrivalled image display effect. In different batches, the cabinets with same model can be calibrated to have same brightness and color. On the basis of keeping consistent brightness and chrominance of the LED screen, the customer can assemble the modules with different batches into one LED screen. That allows for maximum flexibility and reduction of operating cost.

Related Names
SMD LED Panel Manufacturer | Wide Viewing Range LED Board | LED Screen Rental for Concert

Retop LED display solutions achieve the exacting requirements of event organizers.  Retop delivers the best in versatile, reliable and cost-effective display technologies that convey true-to-life images both indoors and outdoors, whatever the weather or lighting conditions. Retop is the best choice to let you outshine in the rental business.

• Our 512×512 4mm outdoor rental LED display is developed by conforming to the increase of the demands in the market for the rental series LED screen. It is characterized by small pixel pitch, high definition and easy installation with the cabinet of apple green. The cabinet is designed by the professional structural engineer through combining the LED product characteristics with the industrial molding design. The single cabinet is nice and concise with the weight of only 8.5kg, which is convenient for transportation and dismantling. The curved design for the backside allows natural transition of the junction surface. The whole product makes the surrounding look more active


• Due to the introduction of the outdoor 6mm SMD module with the improved viewing angles, our 6mm outdoor rental LED Display is taken into a completely new level. The outdoor 3-in-1 SMD module is endowed with multiple usages for fixed and rental application.


• The 640×640 8mm outdoor rental LED display adopts the new die-cast cabinet for rental application and fixed installation. The 8mm pixel pitch makes the product suitable for outdoor application, especially the events and shows requiring a modular and slim LED solution. By using the SMD 3-in-1 LEDs, the product can always deliver the consistent images to the audience.

LED Type

3 in 1 SMD(4040)

LED Driving Method

1/4 dynamic scan

≥6500 cd/㎡

Pixel Pitch

6mm

Power

AC220/110 ± 10%, 47~63Hz

Water proof

Front IP65/Rear IP65

Serviceability

Rear service

Max.current(220V50Hz)

4.13A

Max.Power consumption

≤860W/㎡

Avg.Power consumption

≤301W/㎡

Hor.Viewing angle(min50% brightness)

120°

Vert.Viewing angle(min50% brightness)

120°

Power Factor

>0.9

Certifications

Contrastratio

Operating temperature

-20ºC to +60ºC

Operating humidity

20% to 90%

Lifetime(50% brightness)

100,000 hours

Processing

16 bit

Colors

 281 trillion

Refresh Rate

 ≥ 4000 Hz

Frame Rate

60 fps

Brightness level

Manually 100 levels, automatically 16 levels

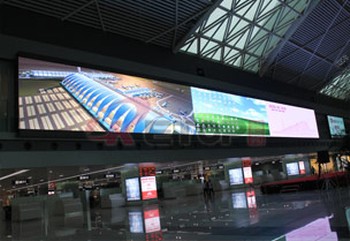

Huanghua Airport,Changsha; Pixel Pitch:6mm; Areas:148m²

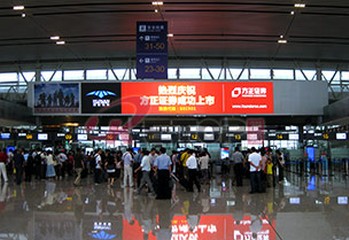

Shuangliu Airport,Chengdu; Pixel Pitch:6mm; Areas:336.88m²
